Wiring Loom Kit for Road or competition Peugeot Rally

This listing is for a Front engined configuration of car construction with the FIA switch configuration

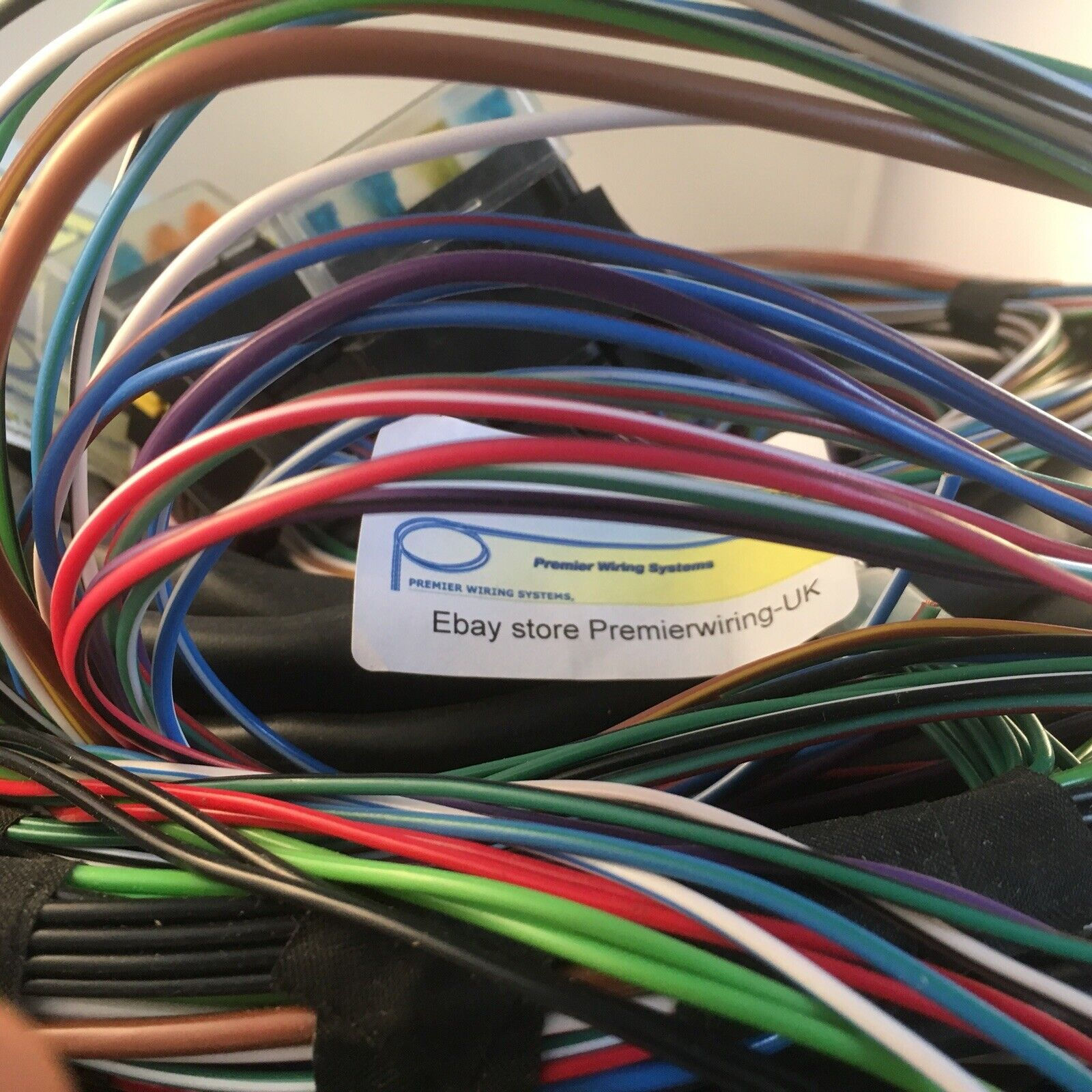

This ALAN Boxshall Wiring Loom, is simple and well constructed with European sourced components .
Google Alans name and you will see the hundreds of forum posts talking about this wonderful product.

Included in the loom is the following circuits

FRONT LOOM

MAIN BEAM
DIP BEAM
N/S SIDE LIGHT
O/S SIDE LIGHT
O/S INDICATOR
N/S INDICATOR
RADIATOR FANs
SCREEN WASH
HORN

REAR LOOM

N/S TAIL LIGHT
O/S TAIL LIGHT
N/S INDICATOR
OS INDICATOR
BRAKE LIGHTS
REAR FOG LIGHT
REVERSE LIGHT
FUEL PUMP
PETROL GAUGE

INSTRUMENT LOOM

FUSED IGNITION LIVE
FUSED PERMANENT LIVE
ILLUMINATION
WATER TEMP
ELECTRONIC OIL PRESSURE
TACHOMETER
FUEL GAUGE
EARTH

ENGINE SPUR

MAIN SUPPLY
IGNITION SUPPLY coil /ecu
CHARGE WARNING LIGHT
ALTENATOR TO STARTER 4,5MM
STARTER SOLENOID
TACHO IMPULSE
WATER TEMPERATURE
OIL WARNING LIGHT
OIL PRESSURE GAUGE
EARTH

This listing is for a front engined configuration of car construction with the FIA switch configuration built in (customer supplied switch ) We have another listing for purchase if you need to source a switch unit.

An excellent way to update your project cars tired and often scary wiring (often domestic connection block).

Comes with a full instruction set and it has a pack of the correct terminal connectors to ensure a painless wiring installation even if you have never done such work before.

See our other listings for the  front engined, configurations of loom.
All the relays* preinstalled  as well as the fuse box pre loaded with fuses.
Made to order according to your specifications within 10 working days.
Condition is New.
